10,000 lb. Carriers
NRC carriers are renowned to be the strongest in the industry. They are known to be the choice of operators seeking performance, strength and top notch quality. NRC carriers are versatile and are the only ones in the industry that enable you to do recovery without having to purchase thousands of dollars worth of options. They are available in deck lengths of 18’, 19’, 20’ and 21’. They are also available in aluminum.
Advantages:
- Recovery capabilities
- Heavy-duty deck lock
- Long deck lock
- Deck sits on frame rails
- Fixed headboard allows easy and safe access to tools
- Standard planetary winch
- Enclosed valve bank
- Stainless steel rods
- Formed cross-members
- Low hinge pin below the frame rails
- Lights on top of the headboard (safety)
- Recessed marker lights
- LED lights
- Best finish in the industry
- Sandblasting & epoxy priming
- Standard Equipment
- Optional Equipment
- Technical Graphs
Standard Equipment
- Floor capacity : 10,000lbs
- Extruded Floor
- Fixed headboard : Chain rack
- Fixed sides
- 3 round recessed side marker lights
- Deck lights
- 3 chain slots on each side
- 17 GPM hydraulic pump directly mounted on PTO
- 12 gallons hydraulic oil tank with filter
- 3" I.D. back and forward cylinder
- 3" I.D. twin tilt cylinders
- 2-1/2" I.D. twin hydraulic cylinders for tow bar
- 2-1/2" I.D. hydraulic cylinder for tow bar extension
- 8,000lbs planetary winch
- 3/8" x 75' steel cable
- Dual control
- Independent hydraulic tow bar
- Sandblast + Primer paint
- Federal standard #108 light group
- Tow lights
Chains & binders
- 1 "V" chain 5/16" x 36" with "J" hooks
- 2 chains 1/4" with snap hooks & 2 binders
- 2 chains 5/16" x 72" with "J" hooks
- 2 safety chains in sub-frame
Optional Equipment
- Front end model "A" (2 tool boxes + light pylon)
- Deck flat top with stake pockets
- Removable rails
- Extra marker light
- Aluminum covering inside light pylon
- 6" T1 steel flat bar welded at the end of the deck
- Tool box 44"
- Large tool box 72" (1 door)
- Large tool box 72" (2 doors)
- Roller guide for recovery
- Stabilizer grip
- Trailer hitch & pintle hook block
- Wheel-lift system
- 2 steps
- Set of work lights on top of rear bumper
- Skirting front only
- Skirting front & rear
- Stainless steel on side of bed
- Stainless steel on skirts
- Stainless steel on light pylon
- Stainless steel on rear bumper
- Deck 102" wide (N/C)
- Extra chain slots
- Remote control
- Light bars
- Paint
- Installation

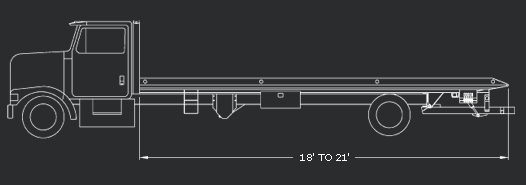

Technical Graphs
