Fixed boom 15 Ton
The original line of NRC wreckers: products that have built the solid NRC reputation through their high quality design and heavy duty strength; equipment that is easy to use, heavy-duty, durable and is nearly maintenance free.
Advantages:
- Ultra heavy-duty
- Light equipment
- Low cost of upkeep (nearly maintenance free)
- Detachable under reach
- Standard Equipment
- Specifications
- Optional Equipment
- Technical Graphs
Standard Equipment
- 15 Ton hydraulic wrecker
- Dual 15,000lbs planetary winches
- 1/2" x 100` steel cable on each drum
- Manual free spool
- Cable tensioners
- Direct mounted tandem hydraulic pump
- Single 5" bore x 33" cylinder for power boom elevation
- Lock & safety valve on elevation cylinder
- Two stage power boom extension
- Directional boom sheave
- Nylon slide on boom
- Dual independent hydraulic rear jack legs
- Removable spades for jack legs
- Lubrication fittings on all moving parts
- Dual control on top of the deck
- Medium duty body 94" wide
- Two tool boxes (basket type)
- Door check & Hold back
- 102" C.A. (from cab to center of rearmost axle)
- Sandblast
- Epoxy primer paint
- Undercoating underneath the body
- Rear mounted recovery anchors
- Mud flaps
- Federal standard #108 light group
- Electric plug
Specifications
Wrecker Specifications
- Boom basic structural rating fully retracted : 30,000lbs
- Boom basic structural rating fully extended : 10,000lbs
- Reach past tailgate : 84"
- Maximum Boom working height : 212"
- Range of elevation : 0° - 52°
Axle-Lift Specifications
- Medium duty : capacity fully retracted : 15,000lbs
- Medium duty : capacity fully extended : 7,000lbs
- Reach fully retracted : 64"
- Reach fully extended : 98"
Chassis Specifications
- Front axle : 10,000lbs minimum
- Rear axle : 21,000lbs minimum
- C.A. available : from 102" (from cab to center of rearmost axle)
- Call NRC for more information
Optional Equipment
- Longer body for chassis with 120" of C.A.
- Longer body for chassis with 138" of C.A.
- Air clutch release on winches
- Medium duty axle-lift
- Super medium duty axle-lift
- Tunnel tool box 24" to 72"
- Battery box inside tunnelW tool box
- Work lights in tunnel tool box
- Light pylon
- Winch covers
- Air plug (truck must have trailer system)
- 2 work lights under the bumper
- Pressure gauges
- Extra marker light
- Wireless remote control
- Stainless package
- Stainless on boom
- Stainless on mast
- Stainless on light pylon
- Stainless on bottom of body
- Stainless on winch covers
- Paint
- Installation

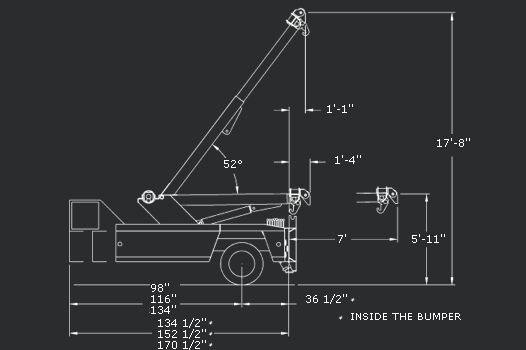

Technical Graphs
