40,000 lb. Carriers
No one else is able to offer carriers that are as heavy-duty as ours. They are known to be the choice of operators seeking performance, strength and top notch quality. NRC carriers are versatile and are the only ones in the industry that enable you to do recovery without having to purchase thousands of dollars worth of options. Available in deck lengths ranging from 24’ to 30’.
Advantages:
- Incredible strength
- Recovery capabilities
- Heavy-duty deck lock
- Long deck lock
- Deck sits on frame rails
- Fixed headboard allows easy and safe access to tools
- 20,000lb or 25,000lb winch
- Second winch available
- Enclosed valve bank
- Stainless steel rods
- Formed cross-members
- Low hinge pin below the frame rails
- Lights on top of the headboard (safety)
- Recessed marker lights
- LED lights
- Best finish in the industry
- Sandblasting & epoxy priming
- 40,0000lb deck capacity
- Available with a T1 steel deck
- 20,000lb wheel-lift
- Standard Equipment
- Optional Equipment
- Technical Graphs
Standard Equipment
- Floor capacity : 40,000lbs
- Floor thickness : ¼"
- Fixed headboard : Chain rack
- Fixed sides
- 3 recessed side marker lights
- Deck lights
- 5 chain slots on each side
- 17 GPM hydraulic pump directly mounted on PTO
- 12 gallons hydraulic oil tank with filter
- 4" I.D. back and forward cylinders
- 4" I.D. twin lift cylinders
- 5" I.D. twin hydraulic cylinders for tow bar
- 3-1/2" I.D. hydraulic cylinder for tow bar extension
- 25,000lbs winch
- 5/8" x 75' steel cable
- Dual control
- Independent hydraulic tow bar
- Sandblast + Primer paint
- Federal standard #108 light group
Optional Equipment
- Deck flat top with stake pockets
- Removable rails
- Deck : 102" wide (N/C)
- Extra chain slots
- Extra marker light
- 6" T1 steel flat bar welded at the end of the deck
- Second winch
- ¼" T1 steel deck
- Wooden floor
- Remote control
- Tool box 44"
- Large tool box 72" (1 door)
- Large tool box 72" (2 doors)
- Roller guide for recovery
- Stabilizer grip
- Trailer hitch & pintle hook block
- Set of work lights under the bumper
- Skirting front only
- Skirting front & rear
- Stainless steel on side of bed
- Stainless steel on skirts
- Stainless steel on light pylon
- Stainless steel on rear bumper
- Light bars
- Paint
- Installation

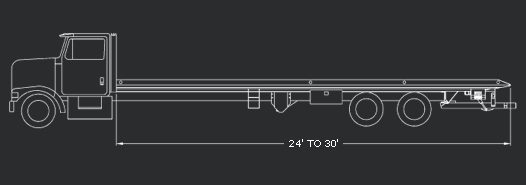

Technical Graphs
