COMPOSITE SLIDING ROTATOR 40/50 CSR

The 40/50 CSR is the only sliding rotator that offers all the well-known power of NRC sliding rotators in a lighter, more attractive and stronger composite body.

With an exceptional maneuverability greatly appreciated by operators, the 40/50 CSR is particularly practical in the city. Compact and strong he can adapt to any situation and can go anywhere to allow you to carry out your work successfully.


View the brochure

Standard Equipment

  • Capacity: 50 Tons
  • Tandem or Tri-axle body
  • Composite side panels
  • Safe lifting capacity: 40 Tons (25% security factor)
  • Hydraulic front & rear low profile outriggers
  • Dual controls
  • Minimum CA for tandem and tri-axle body:
  • 190" (from cab to center of rearmost axle)
  • Sandblast + epoxy primer
  • Federal standard #108 light group
  • LED Lights
  • Panic button
  • Wisely positioned electrical rockers
  • switches for (increased) user’s convenience
  • 7 marker lights per side
  • Curb light on each side
  • Door checks
  • Mud flaps
  • Chain rack
  • Fork holders
  • Air & Electrical hookups
  • Hydraulic pressure gauges
  • Direct mount 17 GPM tandem hydraulic pump
  • Working hydraulic pressure: 2800-3000 PSI
  • Electronic anti-twist device
  • Electronic Self-leveling
  • Recovery anchors on rear outrigger
  • Side Pulling anchors on front and rear outriggers
  • Forward compartments
  • Compartments over the wheel wells
  • Control station lighting
  • Tailboard mounted D-rings
  • Easy access outrigger pads compartments
  • Notched tailboard allowing for increased tilting angle
  • Boom angle indicator

Specifications

Boom Specifications

  • Two stage boom: standard
  • Three stage boom: option
  • "V" shape boom
  • Boom structural rating fully retracted: 100,000 lbs
  • Boom structural rating fully extended (2 stage): 40,000 lbs
  • Boom structural rating fully extended (3 stage): 20,000 lbs
  • Boom range of elevation: 65 (degree)
  • 360 (degree) sheave head
  • D-rings on each boom section

Under lift HD-3

  • Capacity retracted: 35,000 lbs
  • Capacity extended: 15,000 lbs
  • Minimum reach: 73"
  • Maximum reach: 111"

Under lift SHD-3

  • Capacity retracted: 50,000 lbs
  • Capacity extended: 20,000 lbs
  • Minimum reach: 86"
  • Maximum reach: 136"

Under lift SSHD-4

  • Capacity retracted: 70,000 lbs
  • Capacity extended: 23,000 lbs
  • Minimum reach: 76"
  • Maximum reach: 150"

Under lift LSHD-4

  • Capacity retracted: 60,000 lbs
  • Capacity extended: 20,000 lbs
  • Minimum reach: 87"
  • Maximum reach: 176"

Chassis Specifications

  • Front axle: 20,000 lbs
  • Rear axle: 46,000 lbs
  • RBM: 4,500,000 in.lbs
  • CA available from 190" (from cab to center of rearmost axle)
  • Double frame (11-5/8" x 38" thick and full insert 3/8" thick)

Winches & Steel Wire Rope

  • Winch capacity (each): 40,000 lbs
  • Winch type: planetary
  • Wire rope: 3/4" x 200'
  • Cable air tensionners
  • Air free spools
  • Optional: 2 planetary 15,000 lbs auxiliary winches under the boom
  • Optional: 2 planetary 20,000 lbs auxiliary winches under the boom

Optional Equipment

  • Proportional joysticks and wireless remote control
  • 2 Auxiliary 15,000 lbs winches mounted under the boom
  • 2 Auxiliary 20,000 lbs winches mounted under the boom
  • 3 stage boom
  • 3 stage Under lift (HD or SHD)
  • 4 stage Under lift (HD or SHD)
  • Additional attachments
  • Heavy duty tire lift
  • Tunnel tool box (28" to 72")
  • Battery box inside the tunnel tool box
  • Light pylon
  • Winch covers
  • Rear work lights
  • Halogen or Xenon lighting under boom
  • Stainless dress-up kit
  • Aluminum dress-up kit
  • Chain package
  • Recovery straps
  • Snatch blocks
  • Light bar
  • Paint
  • Installation
  • NRC rigging box
  • Outrigger spades for side-pulling
  • Outrigger stabilizer grips (for wooden pads)
  • Spreader bars
  • Boom work lights
  • Tag axle

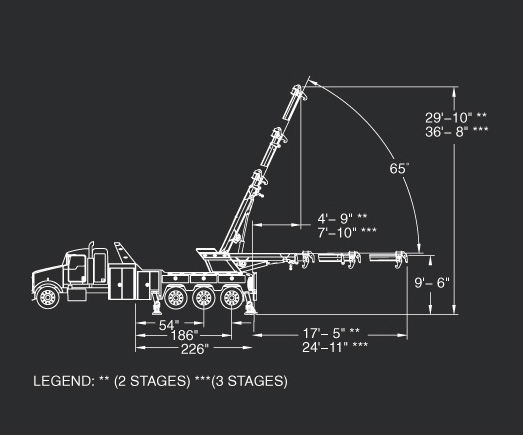

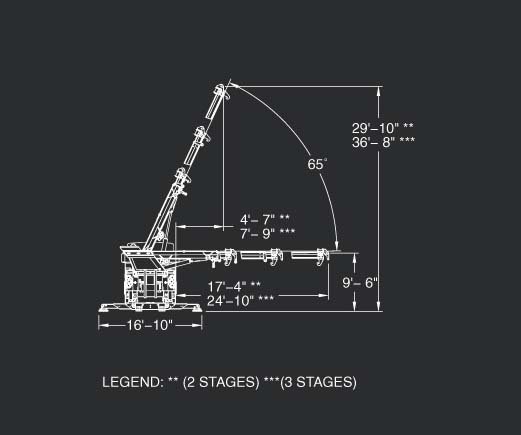

Technical Graphs
