Composite slider 40 CS
Once again, NRC has innovated and is offering you equipment that is more powerful and easier to operate. Completely revolutionizing the industry, the 40 CS (Composite Slider) is the first in its category to be comprised of a 100% composite body that is stronger than steel, yet lighter than aluminum, and offers more strength and more flexibility. The 40CS has an 80 000lb fully retracted V-shaped boom that can really work to its full capacity.
Advantages:
- Double your lifting capacity
- Increase your reach by 99"
- Provides you incredible strength
- Complete composite body
- Rust free
- Great design
- 134 cubic feet of storage space (excluding the optional tunnel tool box)
- All the advantages of a slider
- Work safely with the auxiliary winches (option)
- Standard Equipment
- Specifications
- Optional Equipment
- Technical Graphs
Standard Equipment
- 40 Ton hydraulic wrecker
- 99" sliding boom ; Locks on sliding system
- Dual 40,000lbs hydraulic planetary winches
- 3/4" x 200` steel cable on each drum
- Air clutch release on winches
- Air cable tensioners
- Direct mounted tandem hydraulic pump
- Dual 6-1/2" bore cylinders for power boom elevation
- Lock & safety valve on elevation and extension cylinders
- "V" shaped boom
- Directional boom sheave
- Nylon slide on boom
- Dual independent hydraulic rear jack legs
- Removable spades for jack legs
- Lubrication fittings on all moving parts
- Dual control
- LED Lights in levers control ; 2 pressure gauges
- Composite body 100-5/8'' wide (including fenders)
- 134CuFt of tool box storage
- Aluminum panel with fork holders in big driver side tool box
- Aluminum panel with chain hanger in small driver side tool box
- 2 Curb lights on each side
- 180" C.A. (from cab to center of rearmost axle)
- Sandblast & Epoxy primer paint on all steel pieces
- Modular body
- Rear mounted recovery anchors
- Federal standard #108 light group ; Mud flaps
- Electric plug & Air plug
Specifications
Wrecker Specifications
- Boom basic structural rating fully retracted : 80,000lbs
- Boom basic structural rating fully extended : 30,000lbs
- Reach past tailgate (3rd stage) : 287"
- Maximum Boom working height (3rd stage) : 402"
- Range of elevation : 0° - 60°
Axle-Lift Specifications
- H.D. : capacity fully retracted : 35,000lbs ; Reach : 71"
- H.D. : capacity fully extended : 15,000lbs ; Reach 110"
- S.H.D. : capacity fully retracted : 50,000lbs ; Reach : 86"
- S.H.D. : capacity fully extended : 20,000lbs ; Reach 136"
Chassis Specifications
- Front Axle : 16,000lbs minimum
- Rear Axle : 40,000lbs minimum
- C.A. available : from 180" (from cab to center of rearmost axle)
- Double frame
- Call NRC for more information
Optional Equipment
- 2 Auxiliary 15,000lb winches mounted under the boom
- "L" shaped mounting plate 3/8"
- "L" shaped mounting plate T1 steel 3/8"
- Third stage boom
- Heavy duty axle-lift
- Super heavy duty axle-lift
- Tunnel tool box 24" to 72"
- Battery box inside the tunnel tool box
- Work lights in standard tool boxes
- Work lights in standard & tunnel tool box
- Light pylon
- Aluminum cover inside the light pylon
- Winch covers
- Aluminum checker plate on top of tunnel tool box
- Aluminum checker plate on rear steps
- 2 work lights under the bumper
- marker light per side instead of 10
- Rear corner strobes
- Stainless work light in-between the tires
- 2 Adjustable aluminum shelves in passenger side small tool box
- Aluminum panels in passenger standard tool boxes
- Wireless remote control
- Stainless underneath the marker lights
- Stainless on boom
- Stainless on mast
- Stainless on light pylon
- Stainless on winch covers
- Paint
- Installation

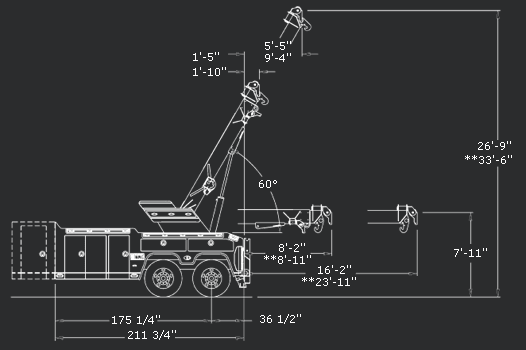

Technical Graphs
