Composite slider 30 CS

Once again, NRC has innovated and is offering you equipment that is more resistant, more powerful and easier to operate. Completely revolutionizing the industry, the 30 CS (Composite Slider) is the first in its category to be comprised of a 100% composite body.

This material is 4 times lighter than steel, offers more strength and more flexibility.

The 30 CS boasts of more storage space with an incredible 90 cubic feet, featuring wide access on both sides of the equipment. Its innovative design produces an even greater lifting capacity, adapting to any situation.

Advantages:


View the brochure

Standard Equipment

  • Capacity: 30 Ton
  • Composite body
  • Dual Independent rear jack legs + removable spades
  • Dual control
  • Minimum CA for tandem axle body:
    142" (from cab to center of rearmost axle)
  • Sandblast + epoxy primer
  • Federal standard #108 light group
  • LED lights
  • Aluminum inserts in bottom of body
  • Panic button
  • Electric switches with rear controls
  • 8 marker lights per side
  • Curb light on each side
  • Door checks
  • Mud flaps
  • Chain Rack
  • Fork holders
  • Air & Electrical hookups
  • Hydraulic pressure gauges
  • Direct mount 17 GPM Tandem hydraulic pump
  • Working hydraulic pressure 2800-3000 PSI
  • Forward compartments
  • Compartments over the wheel wells
  • Control station lighting
  • Tailboard mounted D-rings

Specifications

Boom Specifications

  • Two stage boom: Standard
  • "V" shape boom: Standard
  • Boom structural rating fully retracted: 60,000 lbs
  • Boom structural rating fully extended: 25,000 lbs
  • Boom range of elevation: 60°
  • 360° sheave head

Under lift HD-3

  • Capacity retracted: 35,000 lbs
  • Capacity extended: 15,000 lbs
  • Minimum reach: 73"
  • Maximum reach: 111"

Under lift SHD-3

  • Capacity retracted: 50,000 lbs
  • Capacity extended: 20,000 lbs
  • Minimum reach: 86"
  • Maximum reach: 136"

Under lift SSHD-4

  • Capacity retracted: 60,000 lbs
  • Capacity extended: 23,000 lbs
  • Minimum reach: 76"
  • Maximum reach: 150"

Under lift LSHD-4

  • Capacity retracted: 60,000 lbs
  • Capacity extended: 20,000 lbs
  • Minimum reach: 87"
  • Maximum reach: 176"

Chassis Specifications

  • Front axle: 12,000 lbs minimum (14,600 lbs recommended)
  • Rear axle: 40,000 lbs minimum (46,000 lbs recommended)
  • RBM: 2,500,000 in.lbs
  • CA available from 142"
  • Double frame

Winches & Steel Wire Rope

  • Winch capacity (each): 30,000 lbs
  • Winch type: planetary
  • Wire rope: 5/8” x 200’
  • Cable air tensionners
  • Air free spools

Optional Equipment

  • 3 stage Under lift (HD or SHD)
  • 4 stage Under lift (HD or SHD)
  • Additional attachments
  • Heavy duty tire lift
  • Tunnel tool box (28" to 72")
  • Battery box inside the tunnel tool box
  • Light pylon
  • Winch covers
  • Rear work lights
  • Stainless dress-up kit
  • Aluminum dress-up kit
  • Chain package
  • Recovery straps
  • Snatch blocks
  • Light bar
  • Paint
  • Installation
  • Recessed under lift rails (reduce the overhang)
  • Spreader bars
  • Full width rear stabilizer with multi-function spades (not available with the recessed under lift rails)
  • Rear legs multi-function spades
  • Tag axle
  • Wireless remote control
  • Adjustable aluminum shelves

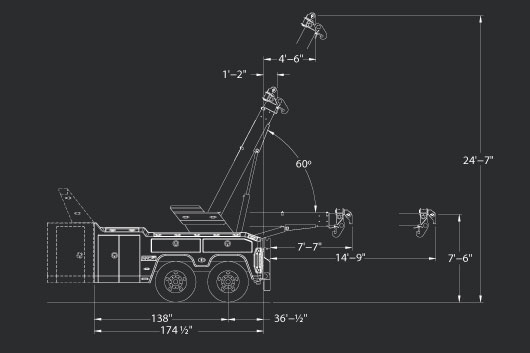

Technical Graphs
